Waterfall Kits with Lights

A waterfall kit with lights combines the parts needed to move water over a spillway with an integrated light that illuminates the falling water. POPOSOAP’s current collection uses electric pumps and includes different spillway widths, waterfall styles, and model-specific LED systems. For the broader range, compare all electric waterfall kits.

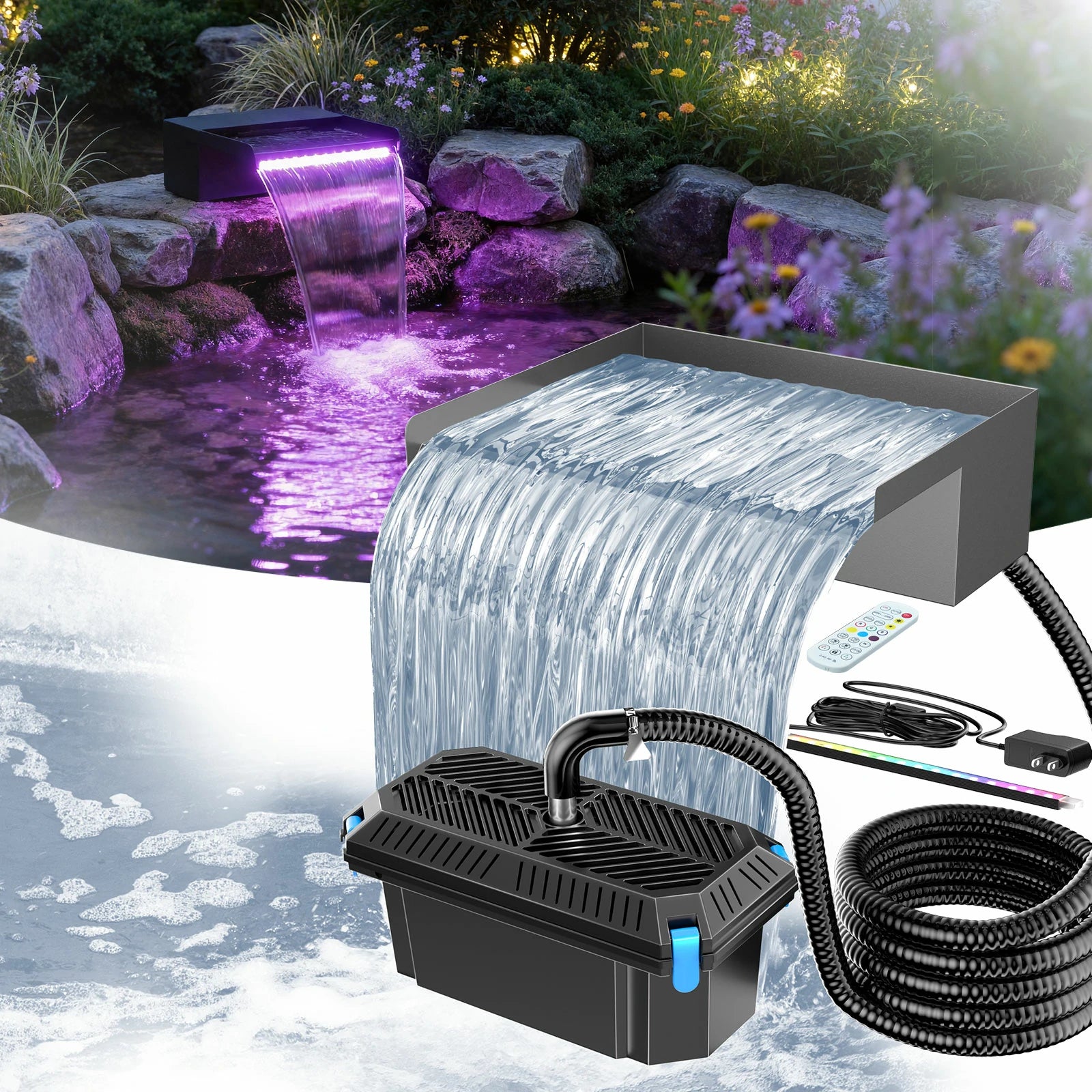

The exact package varies by model. A typical kit includes an electric submersible pump, tubing, a spillway or waterfall box, an integrated light, and connection hardware; selected models also include filter media, a controller, remote, or pondless reservoir components. Check the product page and model instructions before ordering.

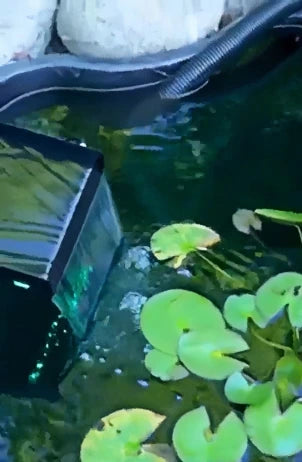

A built-in waterfall light is positioned to illuminate the water as it leaves the spillway, creating a bright edge or glowing sheet. Separate electric pond lights can be aimed at rocks, plants, fish-viewing areas, or other parts of the pond. The two can be used together, but their connectors and controllers must be compatible.

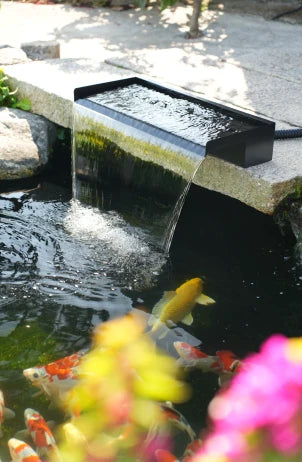

No. The current assortment includes model-specific blue, warm-white, and color-changing light options. If color is a deciding factor, confirm the exact PDP and controller before purchase, then compare separate colored pond lights and warm-white pond lights when you need additional lighting.

Only selected models have automatic dusk behavior. Other kits may use an inline switch, remote, app, timer, or shared power connection. Do not assume one control method applies to every kit; check the exact product description and manual.

That depends on the model and controller design. Some lighting systems have separate controls, while other pump and light functions may share a connection or power schedule. Review the wiring diagram in the model manual before planning independent operation.

Choose by delivered flow at your actual head height, not maximum GPH alone. Measure vertical lift from the pond water surface to the spillway, then account for tubing length, diameter, fittings, and filter resistance. Use the POPOSOAP Water Garden Calculator as a planning aid and confirm the model’s flow/head information before purchase.

Spillway width controls the visible width of the waterfall, while pump delivery controls how full that sheet looks. An 8-inch outlet creates a compact focal point, 12 inches gives a wider residential cascade, and 24 inches makes a broad statement but needs enough delivered flow. Lift, plumbing, and desired sound still matter.

A standard spillway forms a straight sheet, a C-shaped outlet redirects the sheet through a curved profile, and a spray spillway breaks the water into multiple streams or a water-curtain effect. Choose the look first, then confirm that the matched pump can deliver the effect at your planned lift.

Yes, if you use a system designed for a hidden reservoir and recirculating layout. Pondless builds need enough basin capacity, pump access, and splash containment; a regular pond spillway alone is not a complete pondless system. See the pondless waterfall kits collection for matched options.

No. Every kit moves water, but only selected products include meaningful filtration media or a filter-oriented waterfall box. A pump bag mainly protects the intake from larger debris and should not be treated as complete pond filtration. Compare electric pond filters when water treatment is a primary requirement.

Set the spillway on a stable, level base; connect the tubing and model-specific light/control cables; test for leaks; then run the pump before adding final rockwork. A small leveling error can make the water sheet heavy on one side. Follow the model instructions for sealant cure time, connector order, and cable routing.

Use only the power supply and components specified for the model, connect the system to properly protected outdoor power, and follow local electrical codes. Keep plugs, controllers, and non-submersible connections out of standing water and protected from weather as instructed. If the outlet or installation is uncertain, use a qualified electrician.

Do not assume the whole system has one waterproof rating. A submerged or spillway-mounted light, its connector, controller, and power supply can have different exposure limits. Follow the exact manual, keep designated dry components dry, inspect seals and cables, and stop using any damaged component.

They can add circulation and a visual water return, but a decorative waterfall is not a complete fish-care system by itself. Size filtration and aeration for pond volume, stocking, temperature, and species, and avoid aiming intense light continuously at a fish resting area. Ask POPOSOAP Support about model-specific compatibility.

Turn off and unplug the system before handling it. Clean the pump intake and impeller area, flush the tubing, wipe mineral or algae film from the spillway and light lens, check the water level, and inspect connectors for damage or moisture where they should be dry. If flow or lighting still fails, use the support center.

Before freezing weather, follow the model manual and local climate guidance. Disconnect power, drain trapped water, clean and inspect the pump, tubing, spillway, light, and connectors, and store removable components as directed. Use the waterfall pump winterization guide after the editorial corrections listed in this plan are completed.

Replacement strips are available for selected 8-, 12-, and 24-inch waterfall boxes, but width alone does not guarantee electrical or controller compatibility. Match the connector, voltage, control method, and exact product model before ordering from Waterfall Components, or confirm the part with support.
